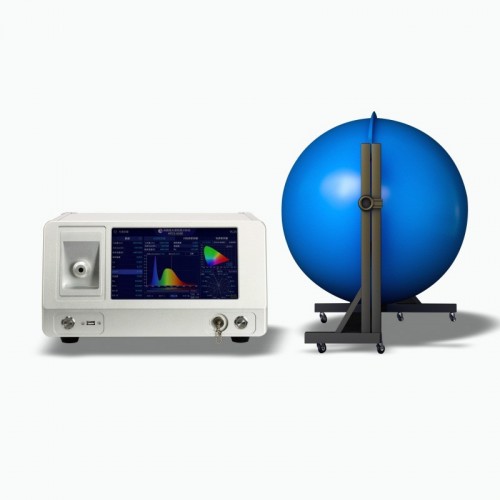

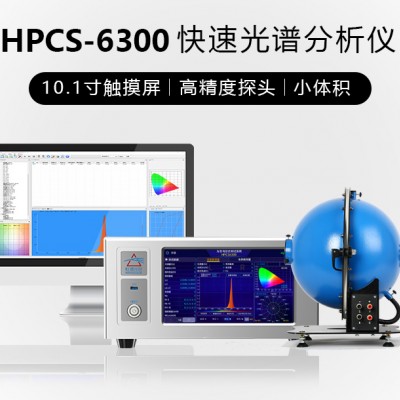

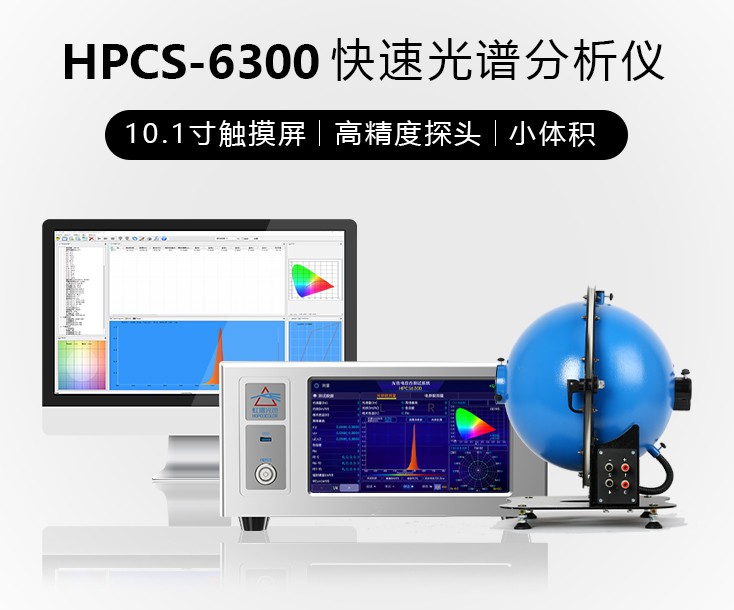

HPCS6300 Spectroradiometer System

1.HP8000 fast scan spectroradiometer

2.Optical fiber with connectors

3.Standard Light Source

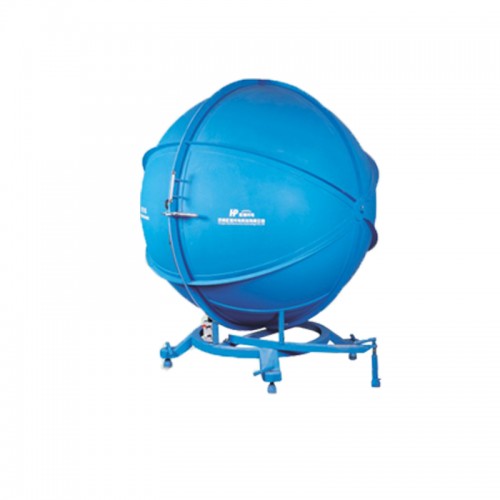

4.Integrating spheres

5.Digital Power Meter

6.Standard Instrument Cabinet

LCD screen display, high test speed, built-in a constant-current DC power source 40V/5A .

APPLICATION

Good human-machine interface with windows operate system, SA905 standard interface and CCD high-speed optical spectra. Connect with a printer can print test report directly, and data can be save as Excel file for analysis purpose. A PC with related devices can fully satisfied with the photic, chromatic and electric analysis and other experiments like this. It is applied to labs, QC department and also production line.

CHRACTERISTICS AND SPECIFICATIONS

The system can determine spectral power distribution, chromaticity coordinates, correlated color temperature, color rending index, color difference, peak wavelength, spectral half width, dominant wave length, color purity, luminous flux, test for photometry colorimetry electricity of LED characteristics.

1. Test speed：5ms-2s;

2. Range of wavelength: 380~780nm;

3. Accuracy of wavelength: ±0.3nm；

4. Accuracy of chromaticity coordinates: ±0.0015（x, y）；

5. Range of dominant wavelength: 380~780nm;

6. Accuracy of dominant wavelength: ±1.5nm；

7. Correlative color temperature: 1000K—100000K, resolution: 1K

8. Range of luminous intensity: 10mcd～3000cd (available with optical device)

9. Range of luminous intensity: 10mlm～200000lm(depending on the size of sphere);

10. Accuracy of electrical parameters: ±5%；

11. Accuracy of photometry: class1.

12. Range of forward current(I_F)：0.01mA～5000mA;

13. Range of forward voltage(V_F)：0.01～40.00V;

14. Range of reverse current(I_R)：0.01μA~200μA;

15. Range of reverse voltage(V_R)：0.01～30.00V;

16. A high degree of intelligent instruments with high stability and repeatability, it is completely satisfied with CIE measurement requirements;
