OHSP-350B/BF Blue light irradiance and Flicker tester
29423 Visit(s)

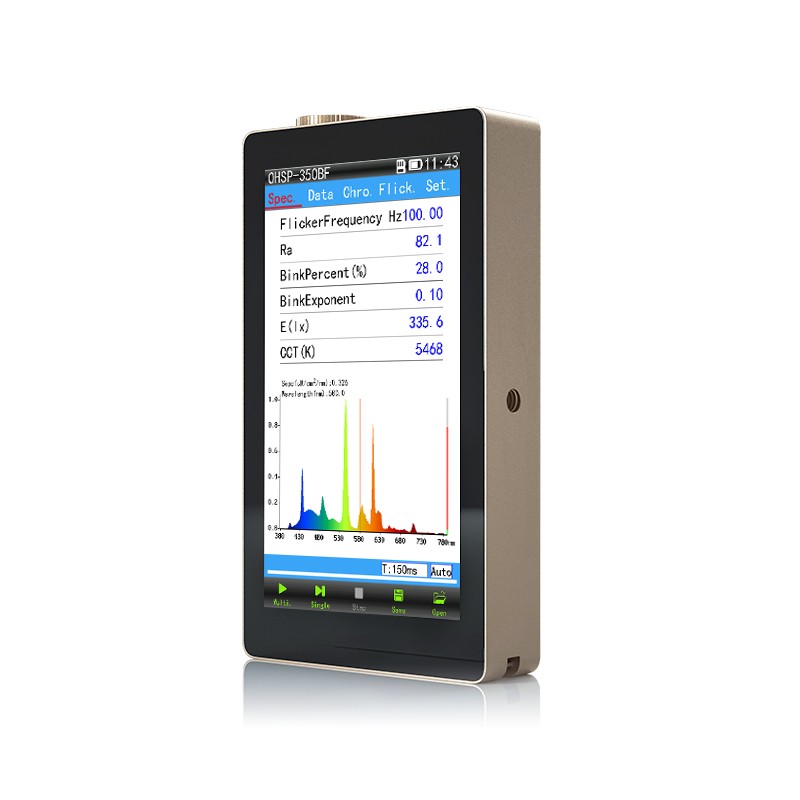

OHSP-350B/BF Spectrometer blue light irradiance and Flicker tester
Characteristic:
◎ Long Focus System, 2 nm FWHM
◎Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
◎Self-developed Operating System, Integration time 20us-10s
◎High Performance CCD Sensor, 3648 dots
◎Electronic shutter Technology, Fast and stable
◎CNC Machining of Aluminum Alloy
◎Large capacity lithium battery
Excl. VAT: $1500
Contact
OHSP-350BR Blue light spectrometer
  • Product Details

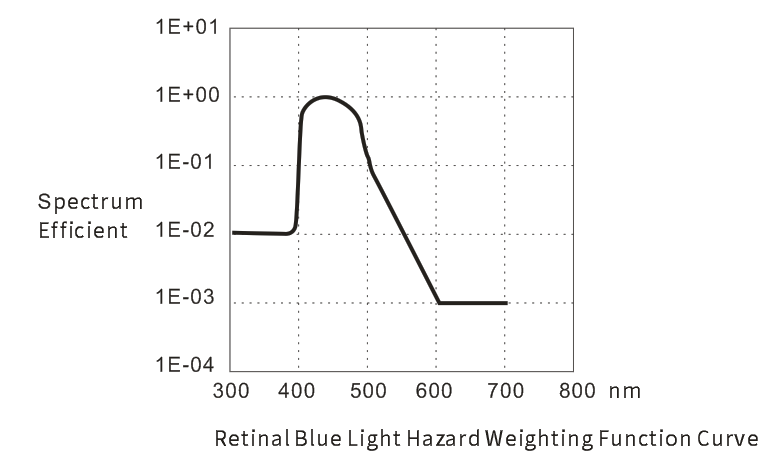

    •  OHSP-350 B/BF add the retina blue light hazard weighted irradiance and Flicker
      test. The calculation method of Blue light Hazard weighted irradiance meet EN62471
      and GBT201452006 standard.The model especially use for Eye protection desk
      lamp、School Classroom Lighting..etc

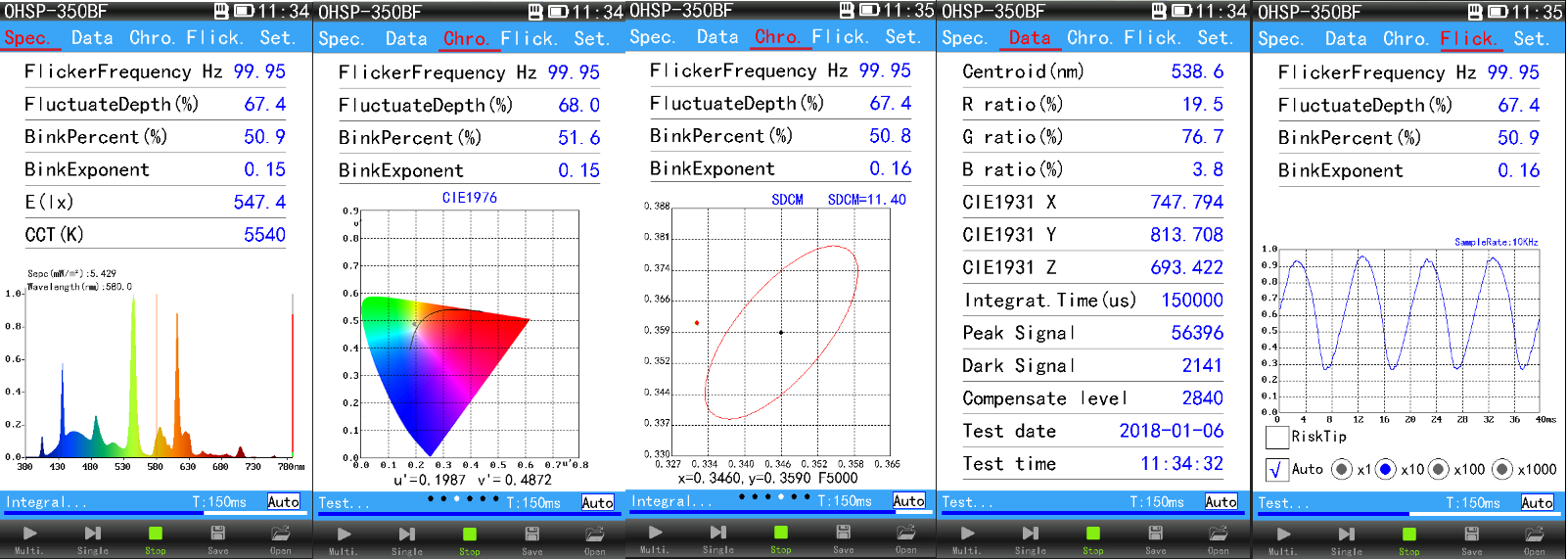

      Meas parameters     Wave range:380-780nm

      Blue Light Hazard irradianceBe(W/m2)
      		 Illuminance（lx）
      		 risk hints RG
      CCT(K)
      		 Spectral Power Distribution
      		 Flicker Percent(%)
      Blue light ratio Bek(W/m2)
      		 Exposable time S
      		 Flicker Index
      Flicker freq(Hz)
      		 Modulation depth(%)
      		 OHSP350 basic parameters

      Application

      Model OHSP350BF Blue Light Version
      Wavelength range

      380nm ~780nm

      Light Splitting Mode

      long focal cross section

      Sensor

      High precision CCD

      Spectral Bandwidth (FWHM)

      2nm

      Spectral Resolution

      0.2nm  X, Y repetitive ±0.0005

      Wavelength Accuracy

      + 0.5nm

      Frequency range

      25-1000 Hz

      Frequency sampling rate

      1-10KHz

      Integrating Time

      50μs～10000ms

      Chromaticity Coordinate Accuracy

      ±0.0025.

      CCT Range

      1,000K~ 100,000K

      Stray Light

      ≤0.3%

      Illuminance Range

      5lx～200klx


      TEST INTERFACE
