HPL220 UVB Irradiance meter

HPL220 Wireless UVB meter

11447 Visit(s)

HPL-220 series UVB ultraviolet irradiator is a professional instrument for measuring UVB band ultraviolet irradiance, which is mainly used in the ultraviolet intensity test of medical skin treatment lamp.

Characteristic:

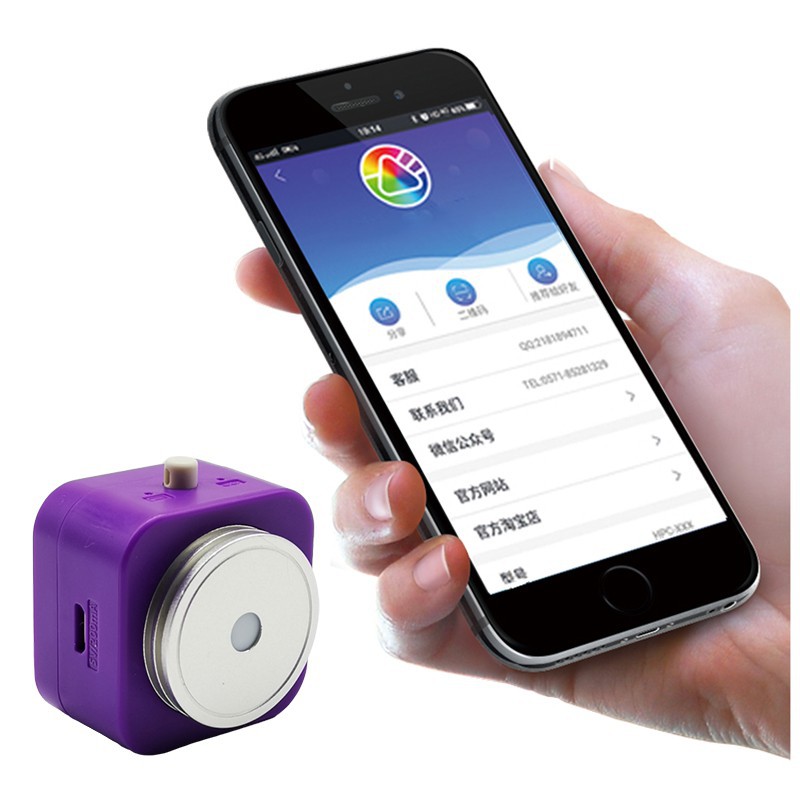

1. Wireless Bluetooth split probe, OLED display host, mobile app;
2. The digital probe has no shift error, is not easy to be interfered, and has high measurement accuracy;
3. Spectral response: 280nm-315nm;
4. Suitable for 297nm, 311nm and other UVB light source strength and energy testing
5. Range: 0.01 - 200000 μ w / cm2;

Excl. VAT: $350

Buy Now Contact

HPL-220UV UVA meter

350UV Ultraviolet Irradiation Spectrometer

Product Details

UVB is known as the middle wave erythema effect ultraviolet ray, it can promote the mineral metabolism and vitamin D formation in the body. Long term exposure will make the skin tan and molt, and be used for UV health lights, medical physiotherapy lamps, plant growth lamps, fluorescent lamps, aging experiments, etc.
The spectral response range is 280nm-315nm, which is suitable for 297nm, 311 wavelength UVB light source measurement.

一 UVB Parameters of UV radiometer

Model	UVB
Measurement accuracy	±8%
Sampling rate	5 times / second
Test light hole diameter	￠6mm
Probe size diameter	￠30 mm
Size	383822mm
Weight	50g

二 UVB Spectral response curve of UV radiometer

三 Model list

	Model	Application	Unit		Measurement range	Wavelength range
UVC	HPL200UVC	UV Germicidal lamp Intensity and energy test λp =254nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	245-280nm
	HPL210UVC
	HPL220UVC
	HPL200UV0	UVCLED Germicidal lamp Intensity and energy test λp =275nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	200-400nm
	HPL210UV0
	HPL220UV0
	HPL200UV1	UVCLED Germicidal lamp Intensity and energy test，λp =275nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	200-400nm
	HPL210UV1
	HPL220UV1
UVB	HPL200UVB	Medical skin treatment lamp UV Intensity test，λp =311nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	280-315nm
	HPL210UVB
	HPL220UVB
UVA	HPL200UVA	UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm<	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	350-380nm
	HPL210UVA
	HPL220UVA
	HPL200UV2	UV curing, UVALED Intensity and energy test of surface light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV2
	HPL210UV2
	HPL200UV3	UV curing, UVLED Intensity and energy test of point light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV3
	HPL220UV3

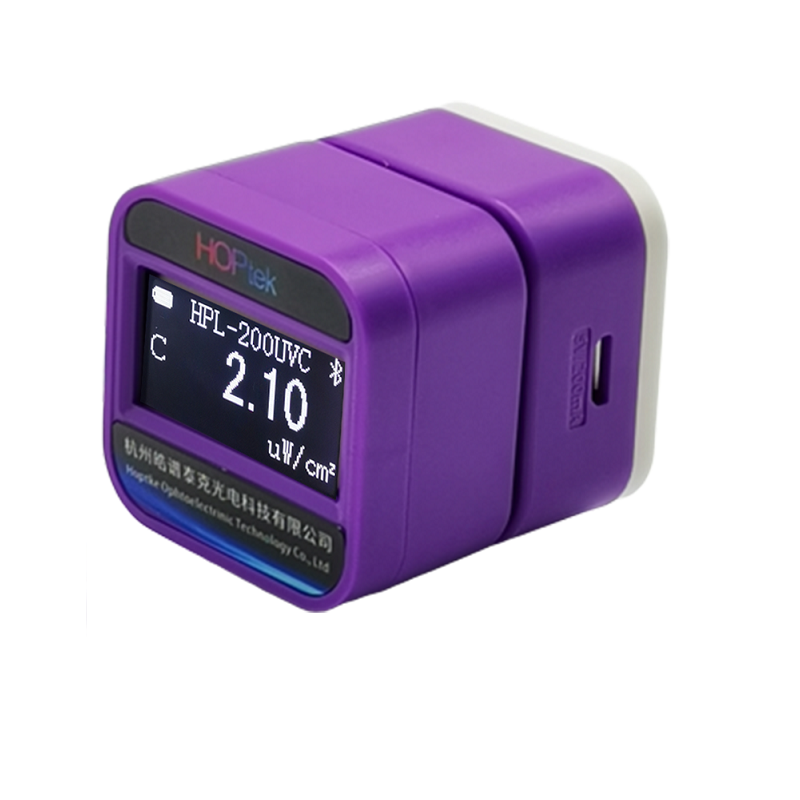

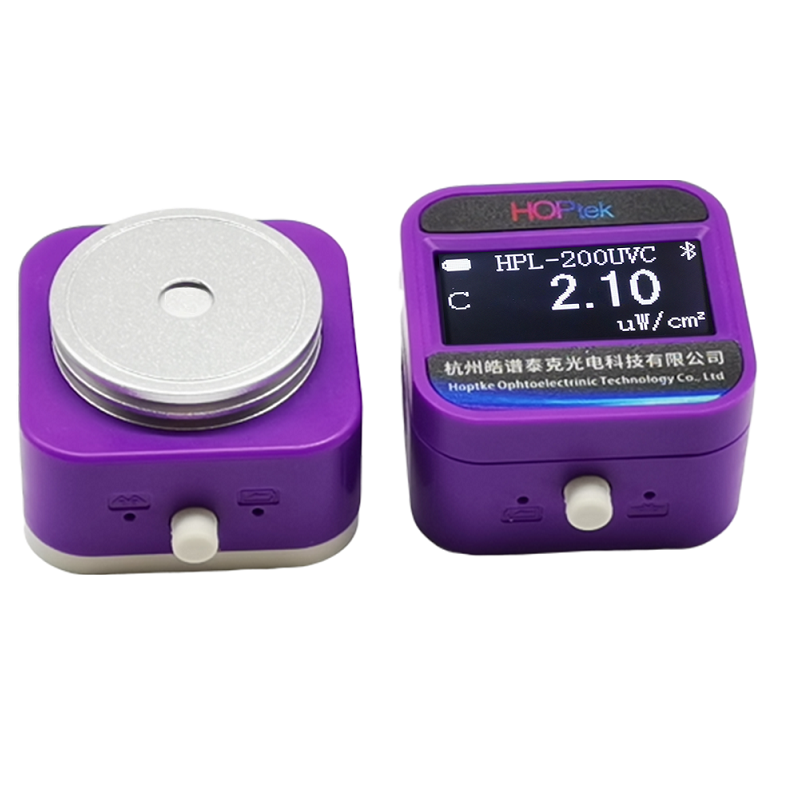

HPL-200 series includes Android mobile app Bluetooth connection； HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection; HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection ;
