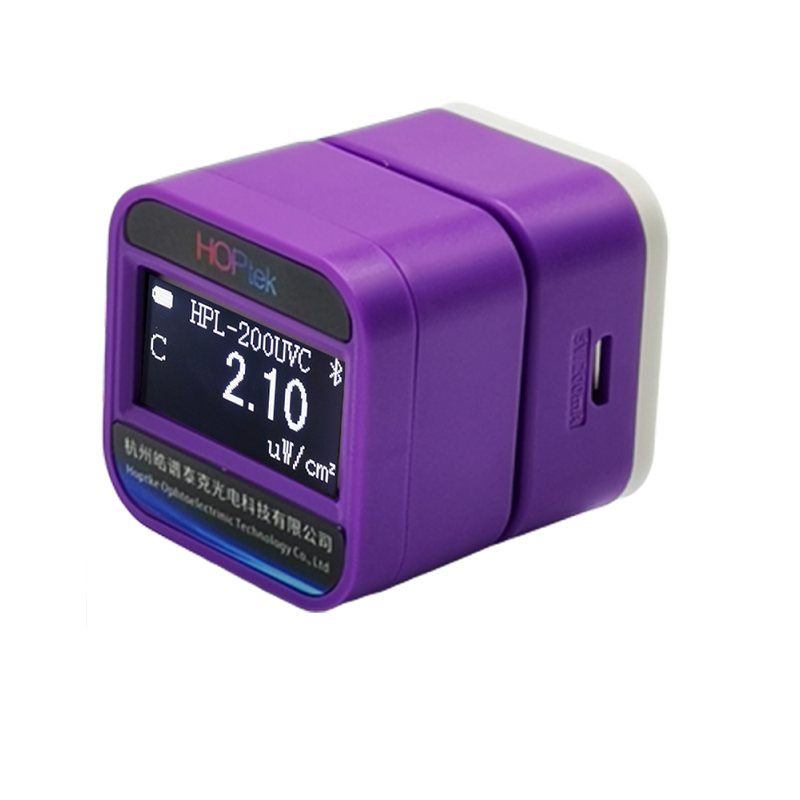

HPL220 UVA Irradiance meter

HPL-220UV Wireless UVA meter

10709 Visit(s)

HPL-220 series UVA meter is suitable for UV curing, high pressure mercury lamp intensity and energy test.
Characteristic:

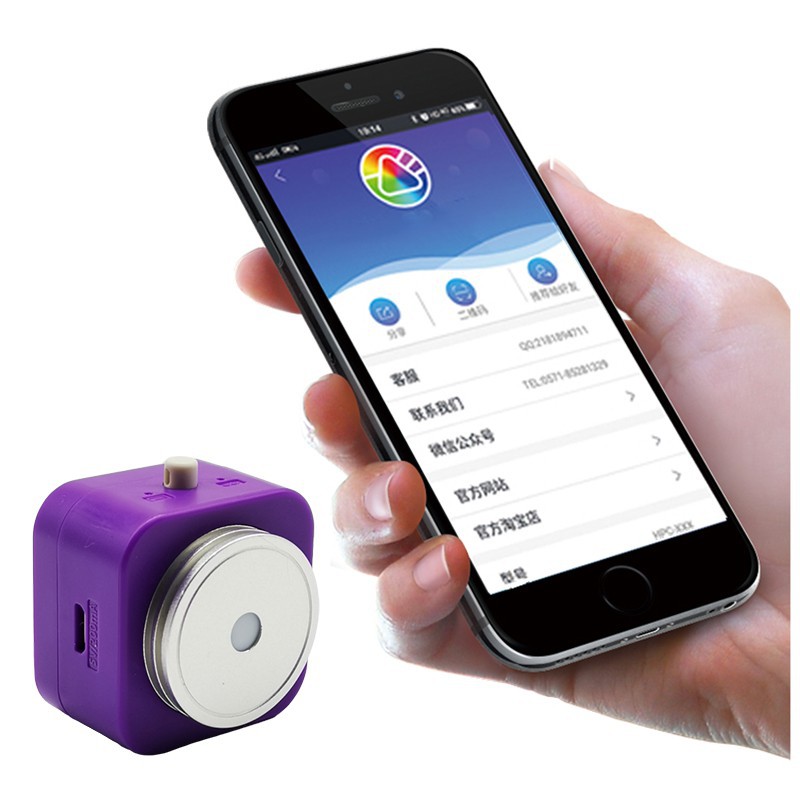

1. Wireless Bluetooth, OLED display (APP only for Android);
2. Spectral response: 350nm - 400nm;
3. Peak wavelength: 365nm, 395nm;
4. Measurement Range: 0.01 - 200000 μ w / cm2;

Excl. VAT: $350

Buy Now Contact

HPL-220UV UVC meter

HPL220 UVB meter

Product Details

UVA waveband is a part of UV wavelength division, known as long wave black spot effect UV, which has strong penetration, can penetrate the skin surface, Tan the skin and produce wrinkles. This band is often used in aging experiments to simulate the sunlight conditions in natural climate. It is suitable for aging test or intensity and energy detection in sunlight.

一 UVA Parameters of UV radiometer

Model	UVA
Measurement accuracy	±8%
Sampling rate	5 times / second
Test light hole diameter	￠6mm
Probe size diameter	￠30 mm
Size	383822mm
Weight	50g

二 UVA Spectral response curve of UV radiometer

三 Model list

	Model	Application	Unit		Measurement range	Wavelength range
UVC	HPL200UVC	UV Germicidal lamp Intensity and energy test λp =254nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	245-280nm
	HPL210UVC
	HPL220UVC
	HPL200UV0	UVCLED Germicidal lamp Intensity and energy test λp =275nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	200-400nm
	HPL210UV0
	HPL220UV0
	HPL200UV1	UVCLED Germicidal lamp Intensity and energy test，λp =275nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	200-400nm
	HPL210UV1
	HPL220UV1
UVB	HPL200UVB	Medical skin treatment lamp UV Intensity test，λp =311nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	280-315nm
	HPL210UVB
	HPL220UVB
UVA	HPL200UVA	UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm<	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	350-380nm
	HPL210UVA
	HPL220UVA
	HPL200UV2	UV curing, UVALED Intensity and energy test of surface light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV2
	HPL210UV2
	HPL200UV3	UV curing, UVLED Intensity and energy test of point light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV3
	HPL220UV3

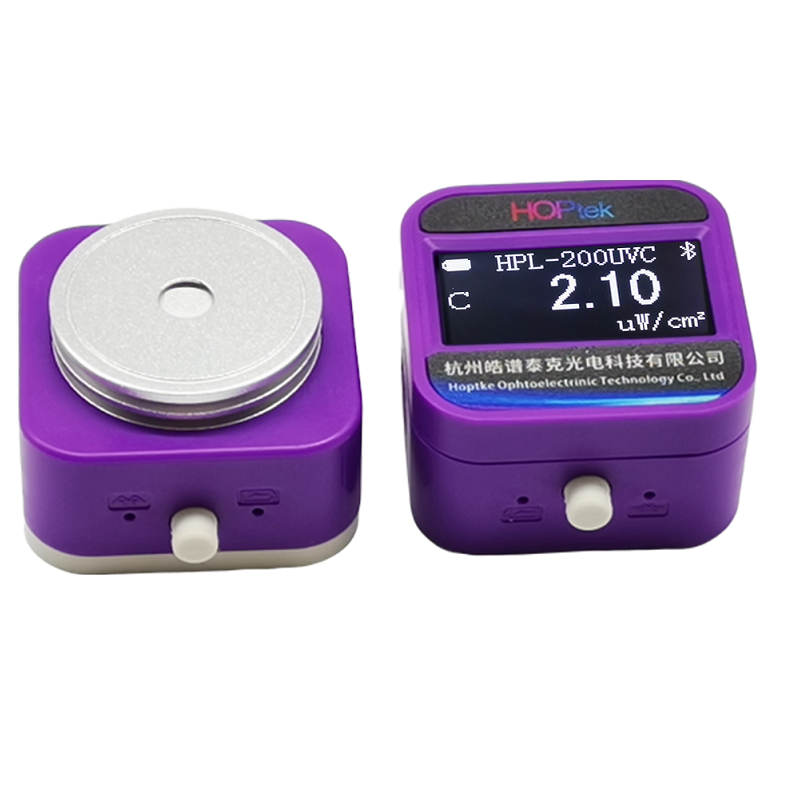

HPL-200 series includes Android mobile app Bluetooth connection； HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection; HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection ;
