OHSP-350 Portable Spectral irradiance colorimeter （With Software）
37724 Visit(s)

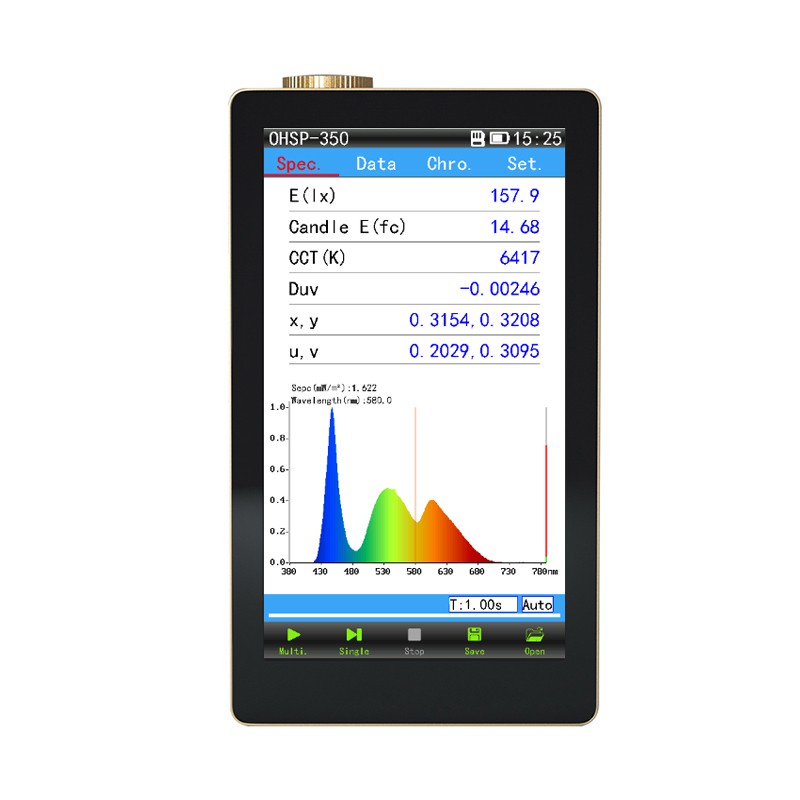

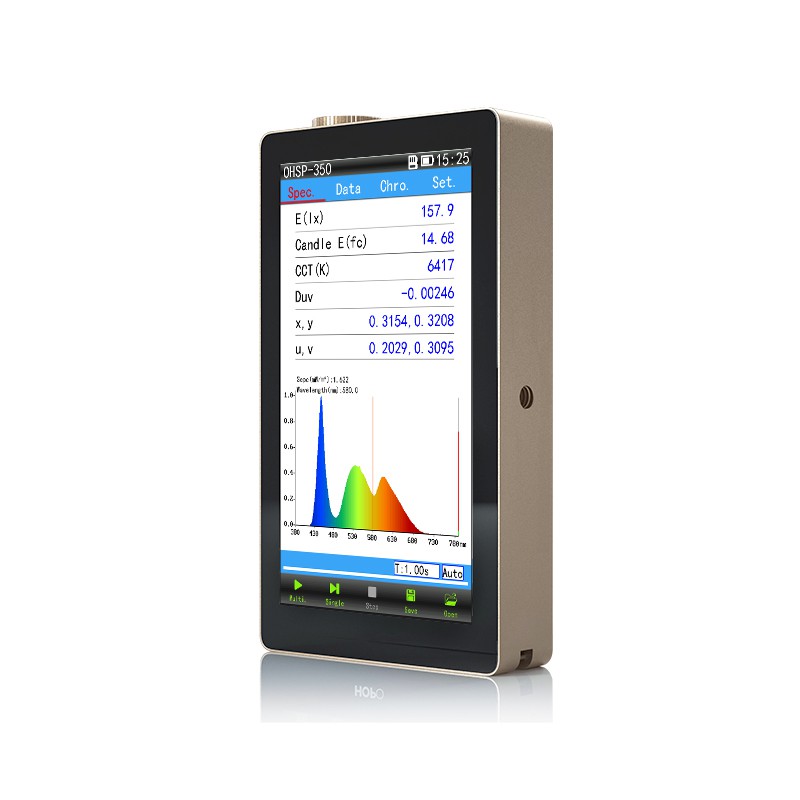

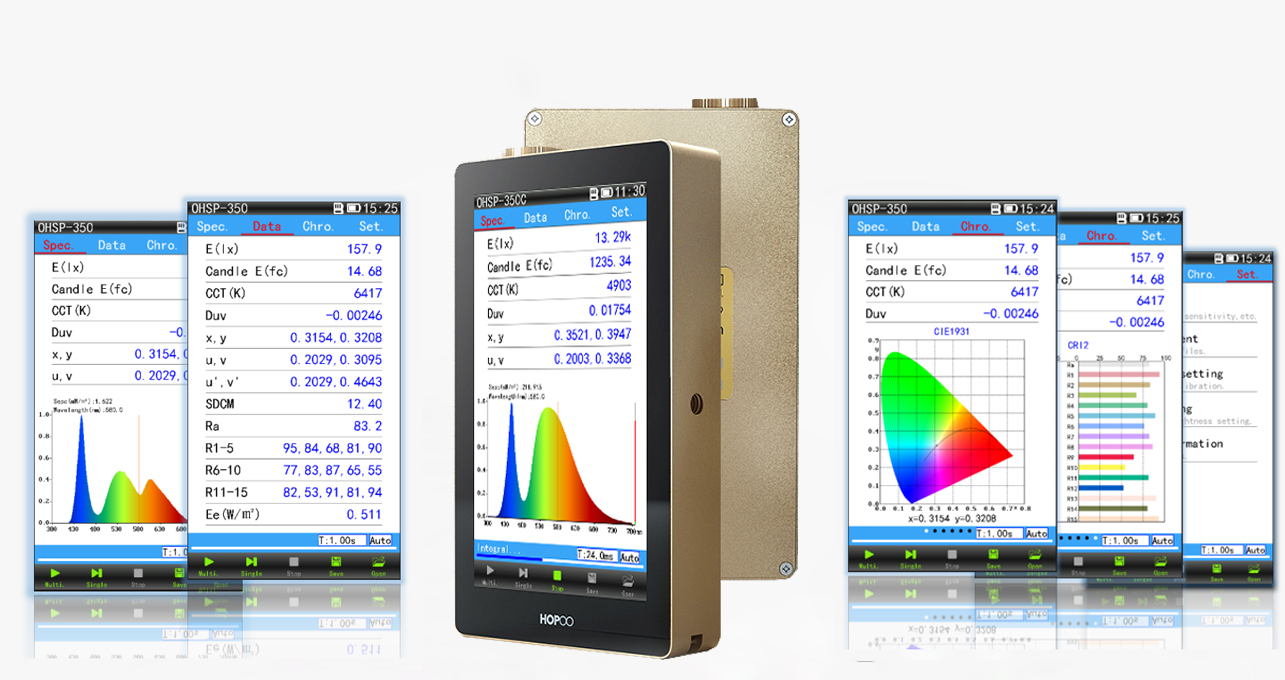

OHSP-350 Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL、HID narrow spectrum light source. It can also be used for environmental lighting testing such as stage design, building lighting, plant growth lights and engineering applications.

Characteristic:
◎ Long Focus System, 2 nm FWHM
◎Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
◎Self-developed Operating System, Integration time 20us-10s
◎High Performance CCD Sensor, 3648 dots
◎Electronic shutter Technology, Fast and stable
◎CNC Machining of Aluminum Alloy
◎Large capacity lithium battery
Excl. VAT: $800
Contact
OHSP-350F Spectral Flickering Colorimeter
OHSP-350C SPECTRAL IRRADIANCE COLCOIMETER
  • Product Details

    • 一、Test parameters

      Name Specifications
      		 Name
      		 Specifications
      Spectral platform Long focus CT system
      		 Illuminance
      		 5-200000lx
      Spectral bandwidth 2nm (FWHM)
      		 CCT range 1000-100000K
      Spectral resol. 0.2nm
      		 x,y Accuracy
      		 ±0.001
      Sensor CCD,3648 dots
      		 x,y Repeatability
      		 ±0.0005
      Integration time 10μs-10s
      		 Illuminance accuracy
      		 ±4%(Class 1)
      Display screen 5' HD IPS LCD
      		 Chromogenic accuracy
      		 ±1.5%
      Resolution 480X854
      		 Wavelength Accuracy
      		 ±0.5nm
      Measure model Single / Continuous
      		 Wavelength Interval
      		 1nm
      Exposure model Auto / Manual
      		 AD Resolution
      		 16bits,250kSPS
      Display model 6 Parameters Sel Spectral Curve
      		 Language/File save
      		 Chinese/English 8GB SD Card
      Output format Excel, jpg
      		 Data Interface
      		 SD Card/USB2.0
      Window size Ø 10mm
      		 Dimensions (L x W x H)
      		 163x81x25.8mm

      二、Application



      三、Model

      Model Version Wavelength Range Function Description Link
      OHSP350 Essence 380-780nm Base parameters Details click
      OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere Details click
      OHSP350B Blue Light 380-780nm Base+Blue Light Details click
      OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Details click
      OHSP350C Economical 380-780nm No software Details click
      OHSP350F Flicker 380-780nm Base+Flicker Details click
      OHSP350FA Flash Lamp 380-780nm Base+Flash Parameters Details click
      OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Details click
      OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters Details click
      OHSP350P Grow Light 350-800nm Base+Grow Light parameters Details click
      OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters Details click
      OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Details click
      OHSP350UV UV 230-850nm Base+UV Irradiation Parameters Details click
      OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM Details click
      OHSP350Z Many Function 380-780nm Illuminance, Luminance, Luminous Flux, Intensity Details click
