HPL-210L Luminance meter

HPL-210L Luminance meter
13534 Visit(s)

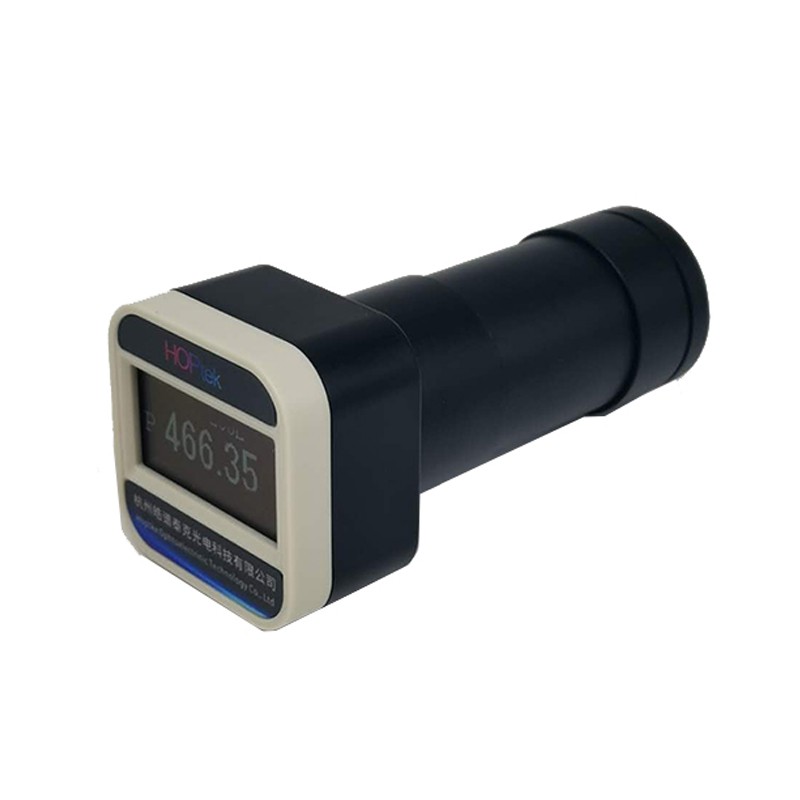

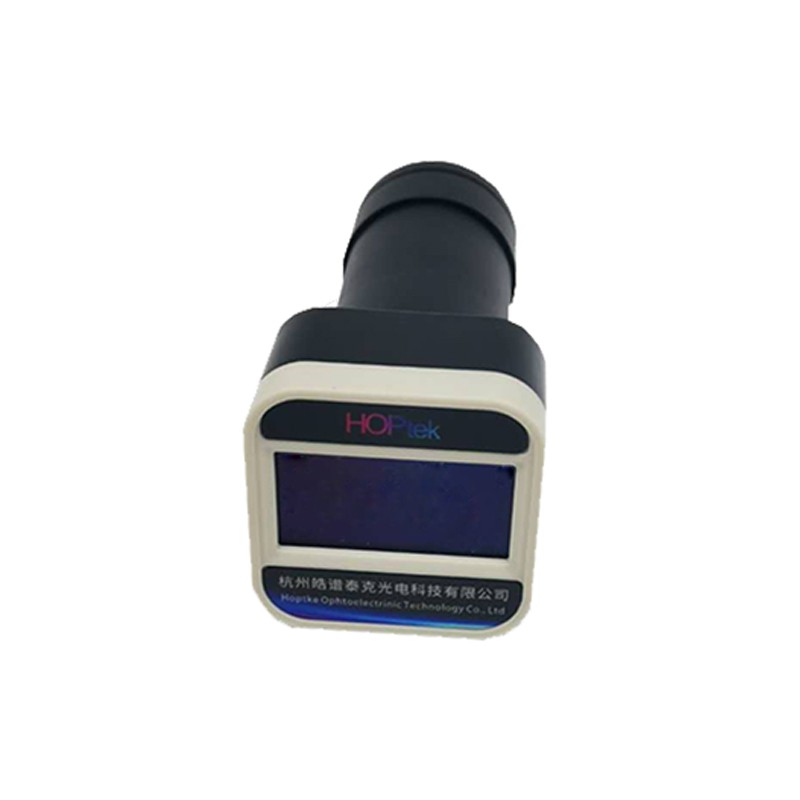

HPL-210L wireless luminance meter is a national first-class precision professional luminance meter, which conforms to the standard of GB / T 5700-2008. It is compact, convenient to use and accurate to measure.

Characteristic:
1. Wireless Bluetooth split probe, OLED display host, mobile app;
2. Digital probe, no shift error, high measurement accuracy;
3. High precision V (λ) correction, reaching the first level of national photometer;
4. Measurement range: 0.01cd/cm2 -- 200kcd / cm2;
Excl. VAT: $250
Buy Now Contact
CX-1000 Imaging luminance meter
  • Product Details

    • HPL210L luminance meter is specially designed for measuring the brightness of various fluorescent screens and monochromatic transmission screens. It has a wide range of applications in the measurement of medical X-ray, CRT and field luminescence, fluorescent substances, monochromatic backlight LCD screen, LCD backlight, etc.

      一、HPL210L Parameters of luminance meter

      Name

      Specifications

      Name

      Specifications

      Measurement range

      0.1-10000cd/m2

      Cosine correction accuracy

      <4%(Class 1)

      Operate Temp

      0~35℃

      V(λ) Error

      <6%(Class 1)

      Storage Temp

      -10~40℃

      Size

      38*38*22mm

      Power Supply

      Lithium battery

      Weight

      50g

      Material

      ABS Plastic

      Test unit

      μW/cm2

      二、Model List

      Name

      Model

      Function Description

      Unit

      Range

      Wave Range

      Wireless Luminance Meter

      HPL200LX

      High precision V (λ) cosine correction, reaching the national level photometer

      lx、FC

      lx.s

      0.1-200,000 lx

      380-780nm

      HPL210LX

      HPL220LX

      Luminance Meter

      HPL200L

      Brightness imaging lens, measurement of luminance of liquid crystal screen

      cd/m2、FL

      0.1-200,000cd/m2

      380-780nm

      HPL210L

      HPL220L

      Luminance Meter

      HPL200L1

      Brightness imaging lens,measurement of luminance of liquid crystal screen

      cd/m2、FL

      0.01-20,000cd/m2

      380-780nm

      HPL210L1

      HPL220L1

      Shading Cylinder Luminance Meter

      HPL200L2

      Shading Cylinder, measurement of luminance of liquid crystal screen

      cd/m2、FL

      10-20000kcd/m2

      380-780nm

      HPL210L2

      HPL220L2

      Wireless Luminous Flux Tester

      HPL200LM

      Measurement of luminous flux of various light sources

      lm

      lm.s

      0.1-200,000 lm

      380-780nm

      HPL210LM

      HPL220LM

      HPL-200 series includes Android mobile app Bluetooth connection;
      HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection;
      HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection;
