HPL220IR Infrared Radiometer

HPL220IR Infrared Radiometer
11846 Visit(s)
HPL220IR infrared optical power meter is a wide spectral line infrared optical power meter, which is mainly used to measure the power density of infrared radiation, that is, the radiant energy power per unit area. HPL220IR infrared irradiator includes OLED display screen and Bluetooth test software, which is convenient to use, accurate in measurement and reliable in quality! Bluetooth connection.
Excl. VAT: $300
Buy Now Contact

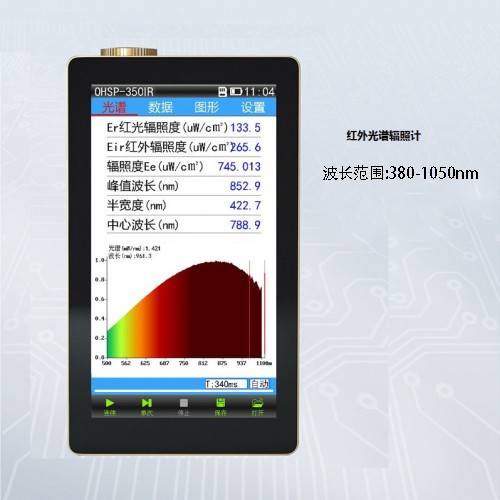

OHSP350IR Infrard Spectrometer
  • Product Details

    • Infrared power meter is a wide spectrum infrared power meter, which is mainly used to measure the power density of infrared radiation, that is, the radiation power per unit area. Easy to use, accurate measurement and reliable quality!

      Application area

      Measurement of radiation intensity of infrared sources such as sunlight, infrared lamp and infrared remote control.

      Optics and laboratories, meteorology and agricultural production.

      Technical Indicator HPL210IR
      Spectral response  600nm-700nm λp = 650nm
      Power measurement range 1uW/c㎡--1000W/㎡
      Power Resolution  0.1 μW /cm2
      Probe size diameter φ30mm
      Measurement accuracy ±5 %
      Sampling rate 5 times / second
      Unit μW/cm2
      Test light hole diameter ￠6 mm
      Probe size diameter ￠30 mm
      Packing size 20*10*8mm


      Name Model Application Unit Range respond
      Irradiance meter HPL220IR1 Infrared light sources , calibrated at 850nm uW/cm2、W/m2 mJ/cm2 0.1-200,000 μW/cm2 800-1100nm
      HPL220IR2 Infrared light sources , calibrated at 940nm uW/cm2、W/m2 mJ/cm2 0.1-200,000 μW/cm2 900-1100nm
      HPL220IR3 Infrared light sources , calibrated at 850nm850nm uW/cm2、W/m2 mJ/cm2 0.1-200,00 mW/cm2 760-1100nm
