OHSP250 Production Line 485 Communication (Industrial version)

OHSP250I Production Line 485 Communication
12812 Visit(s)

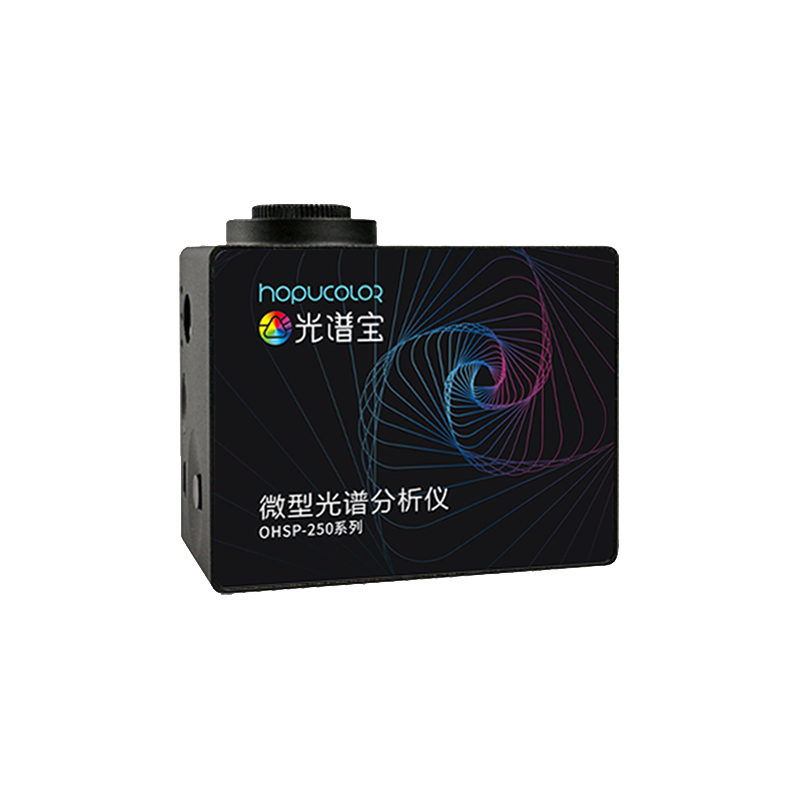

OHSP250I Micro spectroeter is a new generation of online testing instrument. -Using the fusion of advanced micro-spectrometer technology and micro-computer technology, used in production line and online analysis of light and color parameters . RS485 interface or USB interface directly outputs test results and opens communication Protocol, in line with Modbus communication protocol.
Excl. VAT: $1300
Buy Now Contact
HPCS-300IMicro spectrometer (RS485)
  • Product Details

    • OHSP250I micro-spectrometer is a new generation of on-line meas-uring instrument, which adopts advanced technology.The integra-tion of micro-spectrometer technology and micro-computer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color para
      -meters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.

      Technical indiactors

      Parameters

      Specifications

      Spectral range

      380-780nm

      pectral resolution

      0.2nm

      integration time

      10us-10s

      detector

      TCD1304DG,3648

      Standard slit

      100um

      Grating marking

      600l/mm

      Focal Length (Input)

      45mm

      Focal Length (Output)

      65mm

      transform

      16bit/250ksps


      Meas Parameters

      Parameters

      Parameters

      CCT(K)

      Illuminance E(lx)

      Coordinate x,y

      CRI Ra

      Coordinate u,v

      R1-15

      Coordinate u',v'

      SDCM

      Peak wave(nm)

      Centroid wave(nm)

      Half width(nm)

      Irradiance Ee(W/m2)

      Central wave(nm)

      Duv

      Purity（%）

      S/P

      Dominant wave(nm）

      Spectral distributor


      Models

      Model

      Functional version

      Wave Range

      Function Description

      OHSP250



      380-780nm

      Base +USB interface

      OHSP250P

      Plant Light

      350-800nm

      Base+plant light parameters

      OHSP250S

      Flagship

      350-950nm

      Base+plant light+TM-30

      OHSP250L

      luminance

      380-780nm

      （cd/m2）

      OHSP250I

      Industry

      380-780nm

      IO Control, RS485

      OHSP250UV

      UV

      230-850nm

      Base+UV parameters

      OHSP250SF

      Full function

      350-950nm

      Base+plant light+TM-30+flicker+blue light
