HPL200LP Laser power meter

HPL200LP Laser power meter
4536 Visit(s)

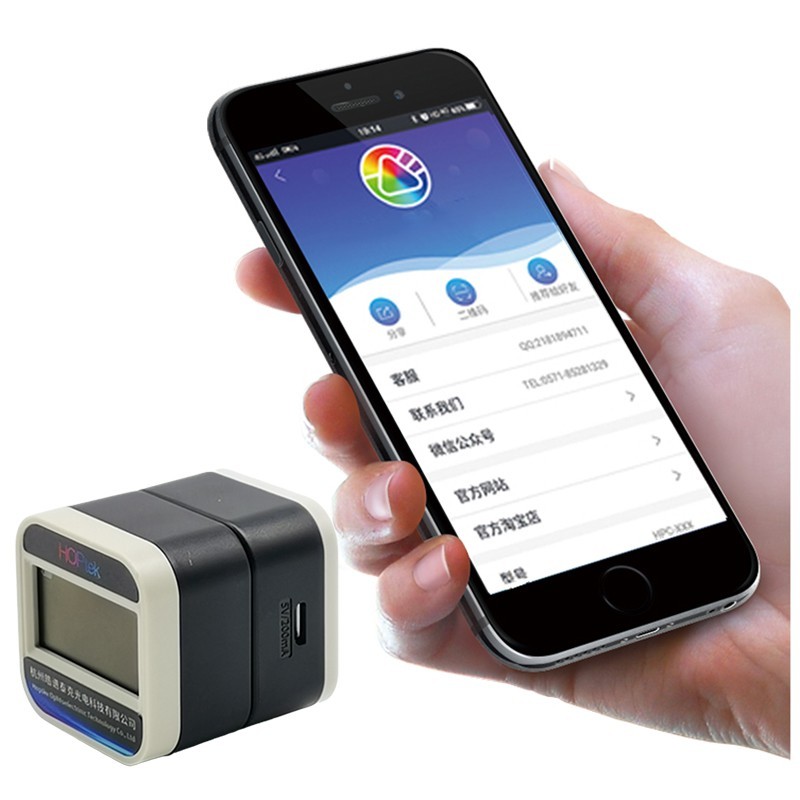

Android mobile phone APP Bluetooth connection, split is the host 1.3 inch OLED screen display, portable laser power meter, with stable work, accurate measurement, small size, easy to use and so on.
Excl. VAT: $150
Buy Now Contact
HPL220B Blue light irradiance meter

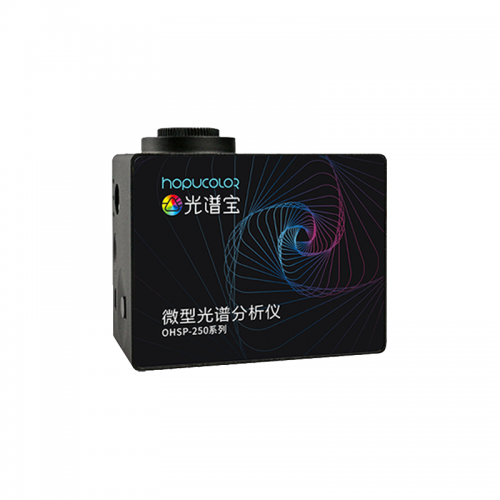

OHSP250I Spectrometer 485 Communication (Industrial version)
  • Product Details

    • HPL200LP Laser power meter

      Android Phone App Bluetooth Connection, OLED display host, Portable Laser power meter, With stable work, accurate measurement, small size, easy to use and so on.

      HPL-200LP intelligent laser power meter adopts innovative compact design, integrates I / v current and voltage conversion, signal processing, data acquisition, storage and transmission in the traditional illuminance meter probe, and integrates the functions that need to be completed by one instrument in one probe to meet the requirements of miniaturization and intellectualization.

      一、HPL200/210/220 Series of illuminometer parameters

      Name

      Specifications

      Name

      Specifications

      Illuminometer Measurement range

      0.1-200K uW

      Cosine correction accuracy

      <4%(Class 1)

      Operate Temp

      0~35℃

      V(λ) Error

      <6%(Class 1)

      Storage Temp

      -10~40℃

      Size

      38*38*44mm

      Power Supply

      Lithium battery

      Weigh（Including battery）

      50g

      Material

      ABS Plastic

      Unit test

      uW



      二、Model list

      Name

      Model

      Function Description

      Unit

      Measurement range

      Wave range

      Laser power meter

      HPL200LP

      Measuring the optical power of different wavelength laser，λp =632.8nm

      uW，mW

      mJ

      0.1-200,000 uW

      350-1100

      HPL210LP

      HPL220LP

      Optical power meter

      HPL200LP1

      With integrating sphere to test the laser power or monochromatic LED，λp =632.8nm

      mW，W

      mJ

      0.01-20,000 mW

      350-1100

      HPL210LM

      HPL220LM

      HPL-200 series includes Android mobile app Bluetooth connection；
      HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection；
      HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection
