OHSP250I Micro Spectrometer
OHSP250I Spectrometer 485 Communication (Industrial version)
6003 Visit(s)
Spectrometer 485 Communication (Industrial version)
Excl. VAT: $1100
- Product Details
-
OHSP250I micro-spectrometer is a new generation of on-line measuring instrument, which adopts advanced technology.The integration of micro-spectrometer technology andmicro-computer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color parameters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.

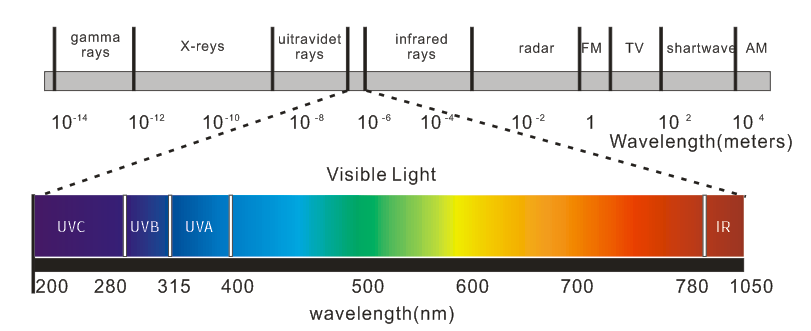

Meas parameters Wave range:380-780nm
Application
Spectral range 380-780nm Spectral Resolution 0.2nm Integrating Time 10μs-10s Detector 3648 Standard Slit 100μm Grating Marking 600mm Focal Length (Input) 45mm Focal Length (Output) 65mm A/D Transform 16bit/250ksps
